Details

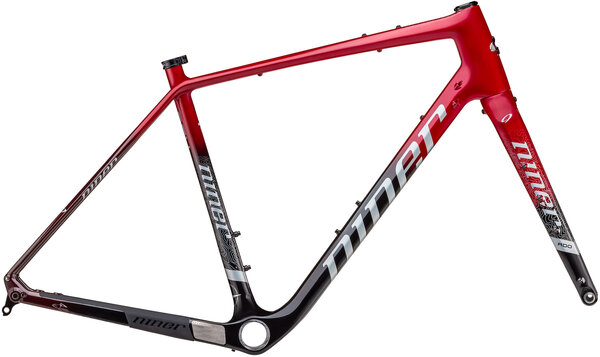

With our newest RLT 9 RDO, we built you a high end carbon gravel bike that you'll want to ride all the time, to any place. With 50c tire clearance, multiple fitments for accessories and cargo, plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere.
47cm | 50cm | 53cm | 56cm | 59cm | 62cm | ||
---|---|---|---|---|---|---|---|
A. Reach (mm) | 362 | 366 | 374 | 384 | 398 | 405 | |
B. Stack (mm) | 535 | 556 | 577 | 592 | 613 | 634 | |
C. Standover (mm) | 693 | 731 | 754 | 780 | 804 | 827 | |
D. Effective Top Tube (mm) | 510 | 525 | 545 | 565 | 585 | 605 | |
E. Head Tube Angle | 70° | 70.5° | 71° | 71.5° | 72° | 72.5° | |
F. Head Tube Length (mm) | 105 | 125 | 145 | 165 | 185 | 205 | |
G. Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 72.5° | |
H. Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 580 | |
J. Bottom Bracket Drop (mm) | 75 | 75 | 75 | 70 | 70 | 70 | |
K. Fork Rake/Offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | |
M. Wheelbase (mm) | 1000 | 1007 | 1017 | 1030 | 1045 | 1054 | |
N. Front to Center (mm) | 581 | 589 | 600 | 611 | 626 | 634 | |
O. Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
Specs
Frame | NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE |
---|---|
Fork | NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Blood Red / 50cm | 008012150409 | 00-801-21-50-40 | 210000016281 |
